Connecting computer peripherals such as keyboard & mouse to a PC introduces potential data leakage and hacking risks. Black Box Secure KVM Switch line provides port isolation between networks ensuring no data is leaked between secure ports and the outside world. Built with true data path isolation between systems and networks, these switches help prevent hardware tampering.
|
Secure KVM Switches Benefits and Features
|
-
NIAP 3.0 Certified Security
The Secure KVM Switches received NIAP PP 3.0 security certification equipped with the highest security features that meet today's Information Assurance safe control standards. The new 3.0 Protection Profile (PP_PSS_V3.0) replaces previous EAL2, EAL4 and Common Criteria regulations with stricter requirements and enhanced security assurance.
-
Improved Operator Situational Awareness with Secure Air-Gap Network Isolation
Control multiple computers through a single keyboard, mouse, and up to four video displays while air-gap maintains absolute isolation between all connected systems.
-
Largest Secure KVM Switch Portfolio
Black Box offers a wide range of NIAP 3.0 certified Secure KVM Switches suitable for any type of application. Choose from KVM switch models with up to 16-ports, analogue or digital video, single, dual or quad monitors.
-
Multiple Switching Signals – DVI-I/DisplayPort/HDMI
Monitor systems with the highest analogue or digital resolutions of up to 4K Ultra-HD 3840×2160 @ 30Hz.
- More benefits
-
Secure Data Transfer without Computer Tampering
Securely transfer files between computers and safeguard your network from accidental transfer, unauthorized access, or compromise of critical data.
-
True Data Path Isolation
Benefit from hardware-based peripheral isolation with no dependency on firmware, keyboard buffering or memory.
-
Secure EDID Learn and Video Emulation
Prevent unwanted and unsecure data to be transmitted through the DDC lines by means of secure EDID learning and emulation. The Secure KVM Switches are designed to learn the connected monitor’s EDID upon power up allowing trouble-free connection to most monitors.
-
Common Access Card (CAC) reader support
A fully advanced and configurable CAC port supports smart cards or biometric readers. Furthermore, authenticated admins can register and assign specific peripheral devices to the CAC port, allowing users to switch this device along with the KVM switching of the connected computers.
|
SECURITY BENEFITS
|
Network Port Security
Access multiple computers assured that your data is protected from accidental or unauthorized transfer when switching between systems.
Network Isolation
Securely control computers with port to port isolation for secure switching with no port crosstalk.
Air Gap your Network
Achieve air-gap isolation between computing devices with data path isolation, preventing cyber hacking and data leakage in environments where security is critical.
Prevent Data Leakage / Breaches
Block peripheral exploits, data breaches, eavesdropping, computer malware.
Prevent Hardware/ Firmware Tampering
Hardware and firmware tampering by enforcing multilayered security mechanisms.
Prevent Cyber Intrusion
Computers can be catalysts for malicious attack or intellectual property theft. Protect desktop access since your computer or device is a potential point of entry into your network.
|
PREVENT CYBER THREATS
|
| Threat: |
Solution: |
| Microprocessor malfunction or unanticipated software bugs causing data to flow between ports. |
Unidirectional data flow is enforced by hardware "data diodes" so data isolation doesn't rely on software integrity. |
| Malicious modification of microprocessor software causing data to leak between ports. |
Microprocessors are one-time programmable and soldered on the board. Data isolation does not rely on software; it is ensured by hardware. |
| Detection of signals on one computer by monitoring for crosstalk (leakage) signals on another computer. |
No connections to sensitive inputs such as computer microphone ports. Minimum crosstalk separation provided between signals from one computer and input or I/O signals to another. |
| Timing analysis attacks (looking at what happens on one port to determine data flow patterns on another). |
Only one computer is connected at a time to any shared circuitry. Links are unidirectional, preventing timing analysis. |
|
INDUSTRY APPLICATIONS
|
Healthcare
Education
|
SECURE KVM SWITCH USE CASES
|

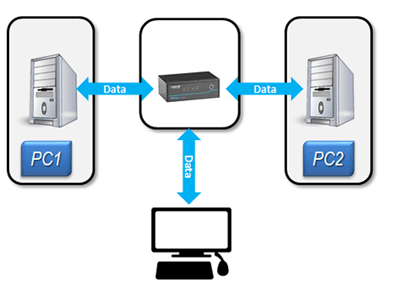

Standard KVM Switching between unclassified computers
Secure KVM Switching between computers with different security levels
NIAP 3.0 certified Secure KVM Switches provide absolute isolation between networks, ideal for use in defense, intelligence and other applications where sensitive data must be protected by controlling access to classified networks in addition to public networks such as the Internet.
|

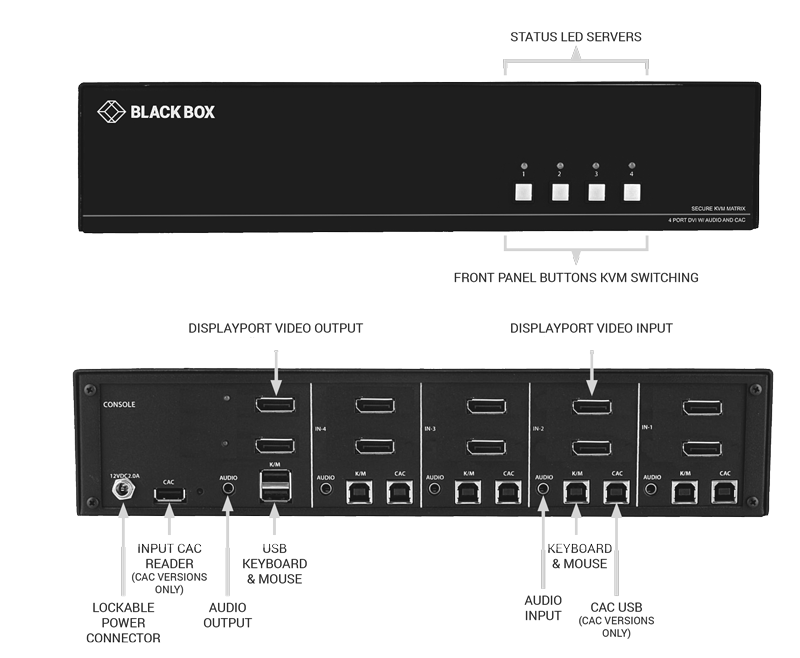

Secure KVM Switches supported Connections
|
(Example 4-Port dual head DisplayPort KVM Switch)
|
PRODUCT PORTFOLIO
|

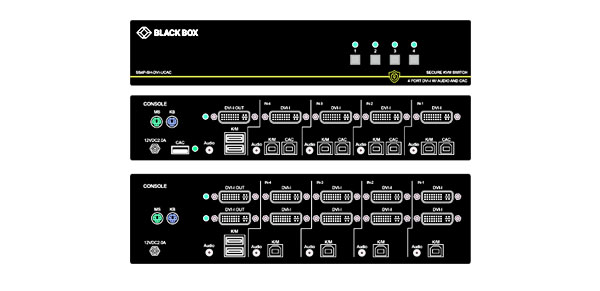

DVI Secure KVM Switches, NIAP 3.0
2/4/8/16-ports with DVI-I video, audio, USB and optional CAC - Centralize control of multiple systems from one keyboard-mouse and up to four monitors. *VGA analog connection via adapter

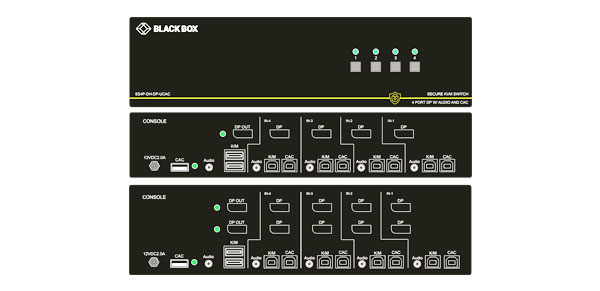

DP or HDMI Secure KVM Switches, NIAP 3.0
2/4/8-ports with 4K DisplayPort or HDMI, USB and optional CAC - Centralize control of multiple systems from one keyboard-mouse and up to two monitors.

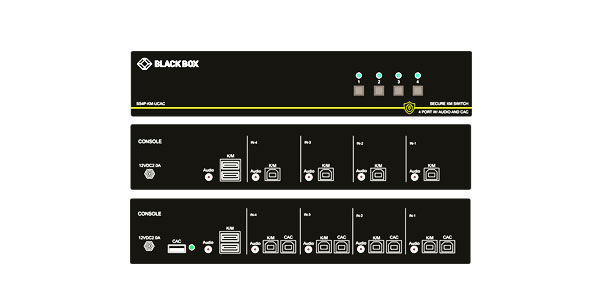

Secure KM Switch
4/8-ports with USB, audio and optional CAC - Switch seamless between systems with the cursor, while simultaneously viewing all video sources.

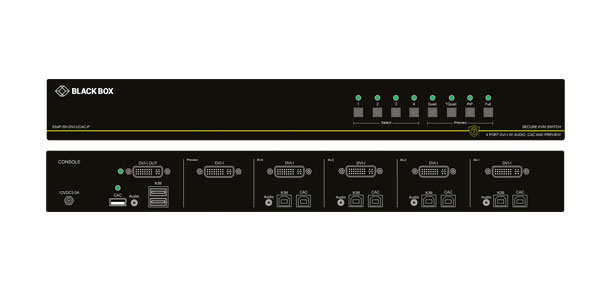

DVI Secure KVM Multiviewer, NIAP 3.0
4-ports with DVI-I video, audio, USB and CAC – allows users to see up to four different secure sources on a single monitor.

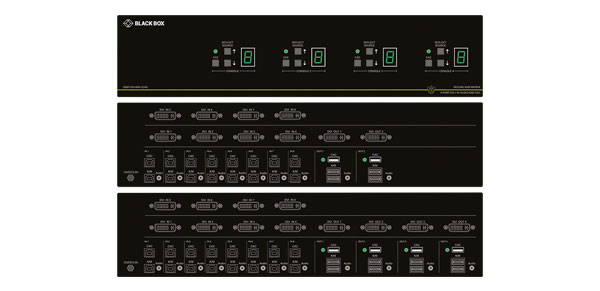

DVI Secure KVM Matrix Switches, NIAP 3.0
DVI-I, USB, Audio and CAC – Allow two or four users secure access to four or eight computers.

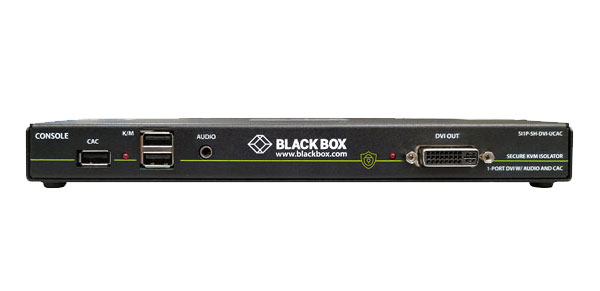

KVM Protector, NIAP 3.0
Blocks the direct connection between a host PC and a peripheral device like a projector exposed to security threats.
|
|
